# SmallestPisotSubstitution

## 3 seconds ago by admin

#Some tools def Z(a): a2 = a.zero_complete2() a2.zero_completeOP() return a2.emonde().minimise() def Pref(a): r = a.emonde() r.set_final_states(r.states()) return r #Automaton whose language is a given word def AutWord (w, A=None): if A is None: A = set(w) if len(w) == 0: return FastAutomaton([(0, 1, l) for l in A],i=0,final_states=[0]) else: return FastAutomaton([(i,i+1,l) for i,l in enumerate(w)]+[(len(w)+1, len(w)+1, l) for l in A],i=0,final_states=[len(w)]) #Automaton whose language is a given set of words def MakeAut(l): start = False for w in l: if not start: start=True u = AutWord(w) else: u = u.union(AutWord(w)) return u #project a on b def Proj(a,b, t=0): arel = m.relations_automaton4(t=t, couples=True, A=m.C, B=m.C) ai = arel.intersection(Z(b).product(Z(a))) d = {} for i in m.C: for j in m.C: d[(i,j)] = i return Z(ai.proj(d)) #project a on b with lengths preserved def Proj2(a,b, t=0): arel = m.relations_automaton4(t=t, couples=True, A=m.C, B=m.C) ai = arel.intersection(b.product(a)) d = {} for i in m.C: for j in m.C: d[(i,j)] = i return ai.proj(d) #test if b-sets are equal def eqQ(a,b,t=0): return Proj(a,b,t=t).equals_langages(Z(b)) and Proj(b,a,t=-t).equals_langages(Z(a)) #S^{0,\Sigma} def S0S (L): L2 = L.copy() A = L2.Alphabet() for e in L2.states(): for i in range(len(A)): if L2.succ(e, i) != -1: if A[i][0] != 0: L2.set_succ(e, i, -1) #suppress edges not of the form (0,*) #return L2 cc = L2.strongly_connected_components(no_trivials=True) print len(cc) F = [e for c in cc if len([e for e in c if not L.is_final(e)]) == 0 for e in c] print F L2.set_final_states(F) F = list(set(L2.coaccessible_states()).intersection(set(L.final_states()))) print F L2 = L.copy() L2.set_final_states(F) return L2.emonde().minimise() def S(L): cc = L.strongly_connected_components(no_trivials=True) print len(cc) F = [e for c in cc if len([e for e in c if not L.is_final(e)]) == 0 for e in c] print F L2 = L.copy() L2.set_final_states(F) F = list(set(L2.coaccessible_states()).intersection(set(L.final_states()))) L2.set_final_states(F) return L2.emonde().minimise() #Save a FastAutomaton def Save(a): E = [] A = a.Alphabet() for e in a.states(): for l in range(len(A)): if a.succ(e, l) != -1: E.append((e, a.succ(e,l), A[l])) print "FastAutomaton(%s, i=%s, final_states=%s)"%(E, a.initial_state(), a.final_states())

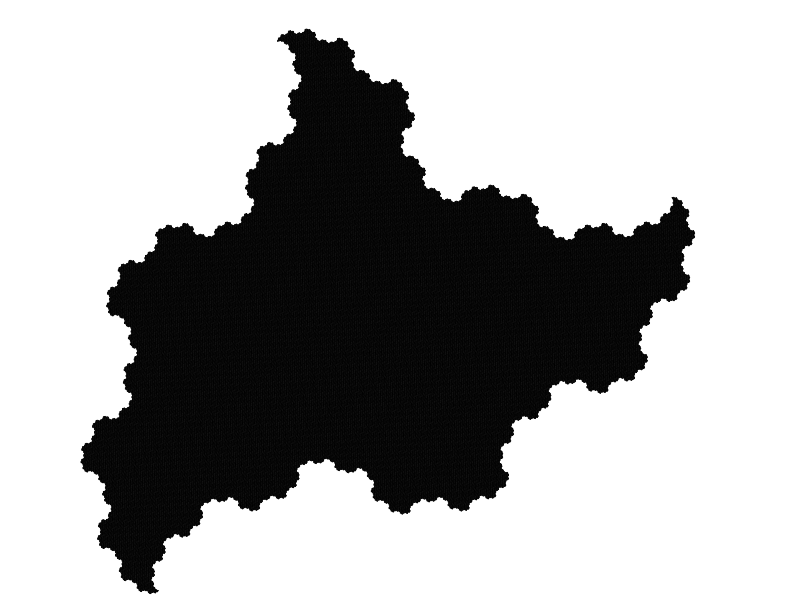

#substitution of the minimal Pisot number s = WordMorphism('1->2,2->3,3->12') print "Substitution of the minimal Pisot number" show(s) #draw the Rauzy fractal m = s.rauzy_fractal_beta_adic_monoid() print m s = FastAutomaton(m.tss) m.plot2(tss=s)
 Substitution of the minimal Pisot number 1↦22↦33↦12$\begin{array}{l}1↦2\\ 2↦3\\ 3↦12\end{array}$Monoid of b-adic expansion with b root of x^3 - x - 1 and numerals set {0, 1} with subshift of 3 states Substitution of the minimal Pisot number Monoid of b-adic expansion with b root of x^3 - x - 1 and numerals set {0, 1} with subshift of 3 states

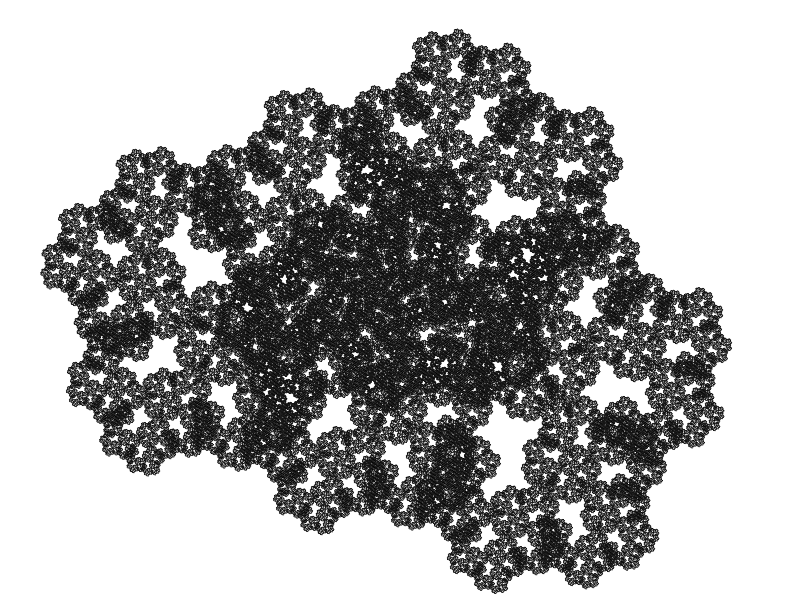

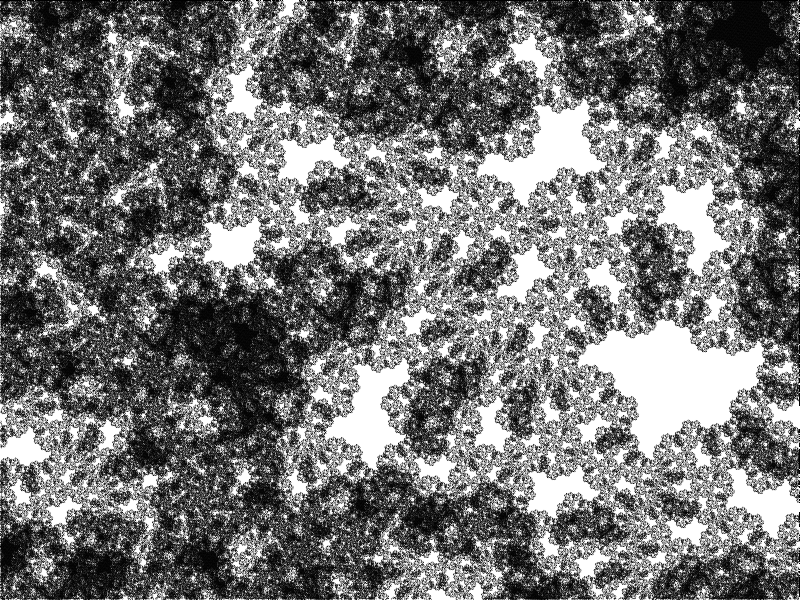

#zoom on the Rauzy fractal m.draw_zoom(tss=s) m.plot2(tss=s, ajust=False)

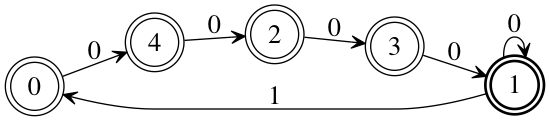

#Hokkaido substitution h = WordMorphism('1->12,2->3,3->4,4->5,5->1') print "Hokkaido Substitution" show(h) m = h.rauzy_fractal_beta_adic_monoid() h = FastAutomaton(m.tss) print h h.plot() m.plot2(tss=h, coeff=8)
 Hokkaido Substitution 1↦122↦33↦44↦55↦1$\begin{array}{l}1↦12\\ 2↦3\\ 3↦4\\ 4↦5\\ 5↦1\end{array}$FastAutomaton with 5 states and an alphabet of 2 letters Hokkaido Substitution FastAutomaton with 5 states and an alphabet of 2 letters
############################################################ # Relations language and countable union of Hokkaido tiles # ############################################################
#calcul de Lrel arel = m.relations_automaton4(t=0, couples=True, A=m.C, B=m.C) arel
 FastAutomaton with 179 states and an alphabet of 4 letters FastAutomaton with 179 states and an alphabet of 4 letters
#check that Q_{0^3L_s} is included in Q_{L_h} Proj(h, s.unshift(0,3)).equals_langages(Z(s.unshift(0,3)))
 True True
#project 0^3L_s on L_h a = Proj(s.unshift(0,3), h) a
 FastAutomaton with 197 states and an alphabet of 2 letters FastAutomaton with 197 states and an alphabet of 2 letters
m.plot2(tss=a, coeff=6)
A = a.copy() cc = a.strongly_connected_components() for c in cc: if len(c) == 5: #test if every state of c is final ok = True for e in c: if not a.is_final(e): ok = False break if ok: #look for the unic state of c with two transistion leaving from it for e in c: if a.succ(e,0) != -1 and a.succ(e,1) != -1: A.set_succ(e,0,-1) #remove these transitions A.set_succ(e,1,-1) A.set_final_states([e]) #take e as the only final state break #now A recognize the language A A = A.emonde().minimise() A
 FastAutomaton with 197 states and an alphabet of 2 letters FastAutomaton with 197 states and an alphabet of 2 letters
len(A.final_states())
 1 1
a.equals_langages(Z(a))
 True True
#M is the complementary of Z(A.h) in a M = a.intersection(Z(A.concat(h)).complementary()) M
 FastAutomaton with 191 states and an alphabet of 2 letters FastAutomaton with 191 states and an alphabet of 2 letters
M.equals_langages(Z(M))
 True True
A.concat(h).equals_langages(Z(A.concat(h)))
 False False

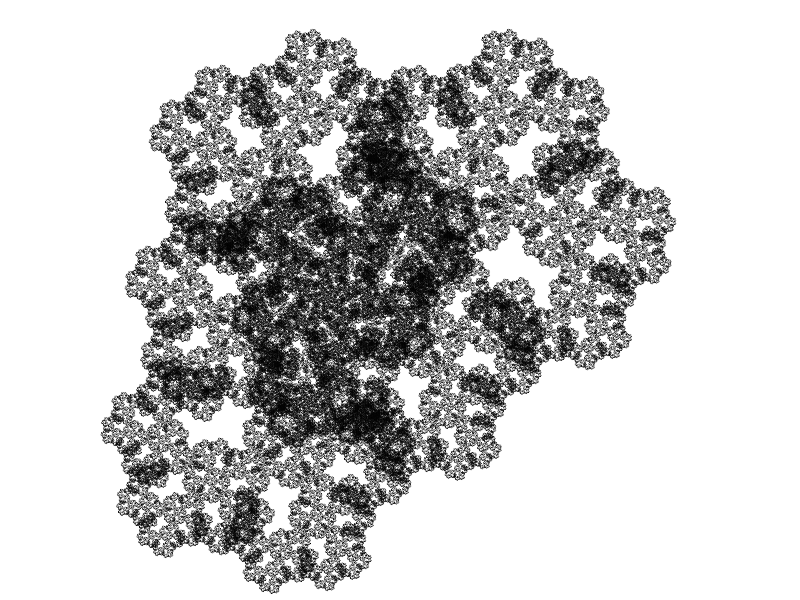

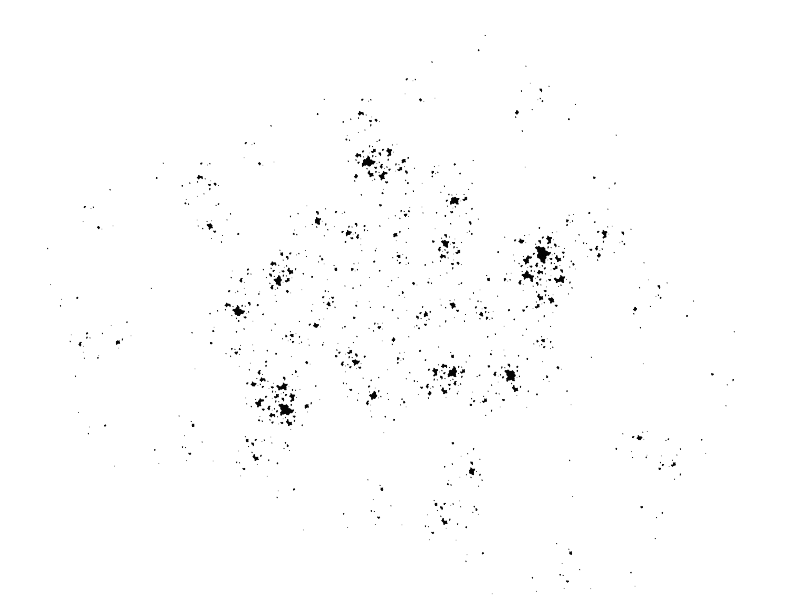

#plot the countable union of Hokkaido m.plot2(tss=A.concat(h))

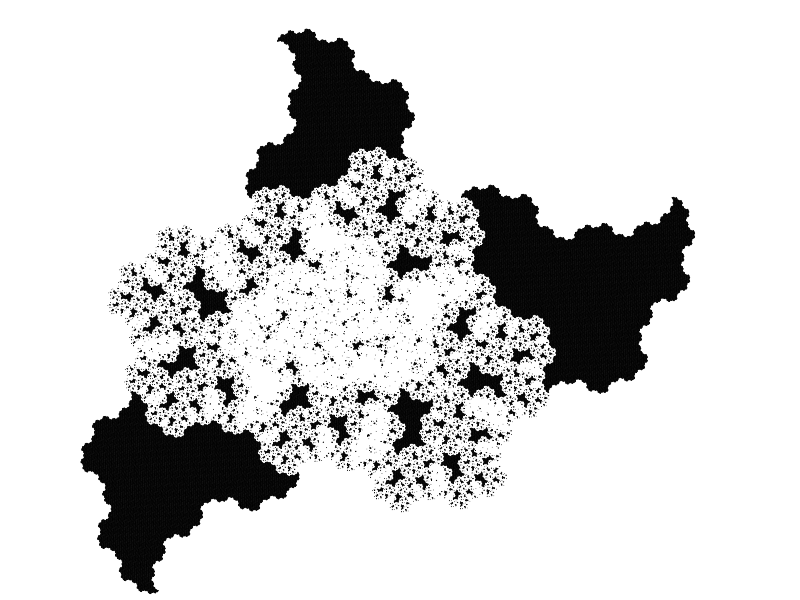

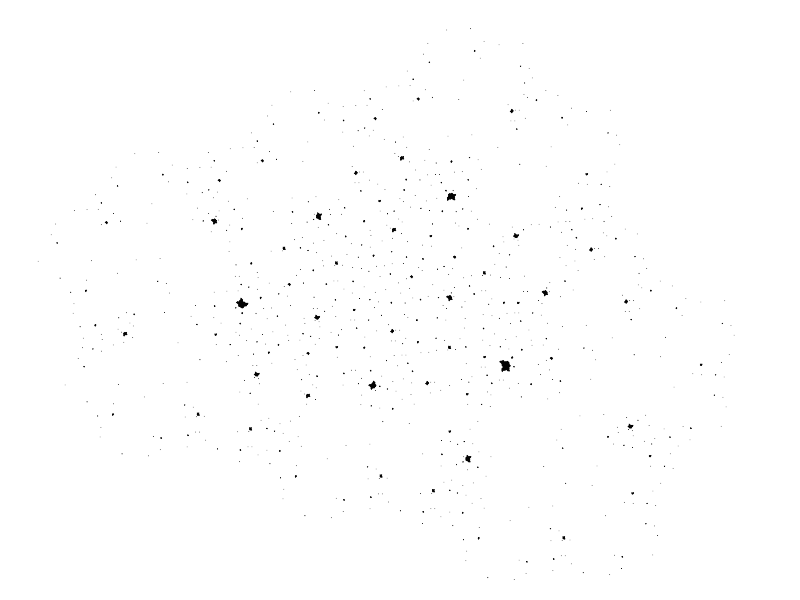

#plot M and check that is has dimension < 2 m.plot2(tss=M, coeff=6) print "dimension %s"%m.critical_exponent_free(M)
 log(y)/log(|b|) where y is the max root of x^13 - x^12 - x^10 + x^9 - 2*x^4 + x^3 - 1 dimension 1.94643460326528 log(y)/log(|b|) where y is the max root of x^13 - x^12 - x^10 + x^9 - 2*x^4 + x^3 - 1 dimension 1.94643460326528
######################################################### # Extended relations automaton and three type of shapes # #########################################################
#calcul de Lrelinf arelinf = m.relations_automaton4(t=0, ext=True, couples=True, A=m.C, B=m.C) print arelinf arelinf.equals_langages(arel)
 FastAutomaton with 179 states and an alphabet of 4 letters False FastAutomaton with 179 states and an alphabet of 4 letters False
#compute B such that Q_B = Q_h \ adh(Q_{0^3 s}) L = S0S(Z(h).product(Pref(Z(s.unshift(0,3)))).intersection(arelinf)).proji(0) B = Z(h).intersection(L.complementary()) m.plot2(tss=B)
 3 [66, 67, 73, 78, 80, 26, 33, 34, 41] [18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 33, 34, 35, 39, 40, 41, 43, 44, 47, 48, 49, 53, 54, 55, 65, 66, 67, 68, 69, 70, 71, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91] 3 [66, 67, 73, 78, 80, 26, 33, 34, 41] [18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 33, 34, 35, 39, 40, 41, 43, 44, 47, 48, 49, 53, 54, 55, 65, 66, 67, 68, 69, 70, 71, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91]
#check that Q_M is included in the adherence of Q_B ai = Z(M).product(Pref(Z(B))).emonde().minimise().intersection(arelinf) print ai #apply S^{0,\Sigma} ai = S0S(ai) print ai M2 = ai.proji(0) print M2 print M2.included(M) print M.included(M2)
 FastAutomaton with 3240 states and an alphabet of 4 letters 11 [30, 32, 53, 86, 90, 91, 92, 96, 97, 98, 99, 100, 194, 197, 209, 31, 58, 89, 126, 127, 128, 129, 136, 146, 147, 162, 180, 188, 189, 205, 38, 74, 87, 93, 94, 95, 154, 158, 159, 172, 176, 179, 195, 196, 210, 39, 40, 41, 75, 76, 77, 78, 80, 81, 88, 108, 109, 153, 156, 199, 42, 43, 44, 45, 46, 47, 56, 57, 107, 110, 111, 112, 113, 135, 200, 52, 55, 106, 114, 115, 116, 117, 137, 138, 141, 148, 155, 157, 160, 161, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 70, 122, 124, 130, 198, 123, 125, 131, 139, 140, 204] [30, 31, 32, 33, 34, 35, 36, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100, 101, 102, 103, 104, 106, 107, 108, 109, 110, 111, 112, 113, 114, 115, 116, 117, 118, 119, 120, 121, 122, 123, 124, 125, 126, 127, 128, 129, 130, 131, 132, 133, 134, 135, 136, 137, 138, 139, 140, 141, 142, 143, 144, 145, 146, 147, 148, 149, 150, 151, 152, 153, 154, 155, 156, 157, 158, 159, 160, 161, 162, 168, 169, 170, 171, 172, 173, 174, 175, 176, 177, 178, 179, 180, 181, 182, 183, 184, 185, 186, 187, 188, 189, 190, 191, 192, 193, 194, 195, 196, 197, 198, 199, 200, 201, 202, 203, 204, 205, 206, 207, 208, 209, 210] FastAutomaton with 191 states and an alphabet of 4 letters FastAutomaton with 191 states and an alphabet of 2 letters True True FastAutomaton with 3240 states and an alphabet of 4 letters 11 [30, 32, 53, 86, 90, 91, 92, 96, 97, 98, 99, 100, 194, 197, 209, 31, 58, 89, 126, 127, 128, 129, 136, 146, 147, 162, 180, 188, 189, 205, 38, 74, 87, 93, 94, 95, 154, 158, 159, 172, 176, 179, 195, 196, 210, 39, 40, 41, 75, 76, 77, 78, 80, 81, 88, 108, 109, 153, 156, 199, 42, 43, 44, 45, 46, 47, 56, 57, 107, 110, 111, 112, 113, 135, 200, 52, 55, 106, 114, 115, 116, 117, 137, 138, 141, 148, 155, 157, 160, 161, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 70, 122, 124, 130, 198, 123, 125, 131, 139, 140, 204] [30, 31, 32, 33, 34, 35, 36, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100, 101, 102, 103, 104, 106, 107, 108, 109, 110, 111, 112, 113, 114, 115, 116, 117, 118, 119, 120, 121, 122, 123, 124, 125, 126, 127, 128, 129, 130, 131, 132, 133, 134, 135, 136, 137, 138, 139, 140, 141, 142, 143, 144, 145, 146, 147, 148, 149, 150, 151, 152, 153, 154, 155, 156, 157, 158, 159, 160, 161, 162, 168, 169, 170, 171, 172, 173, 174, 175, 176, 177, 178, 179, 180, 181, 182, 183, 184, 185, 186, 187, 188, 189, 190, 191, 192, 193, 194, 195, 196, 197, 198, 199, 200, 201, 202, 203, 204, 205, 206, 207, 208, 209, 210] FastAutomaton with 191 states and an alphabet of 4 letters FastAutomaton with 191 states and an alphabet of 2 letters True True
M.equals_langages(M2)
 True True

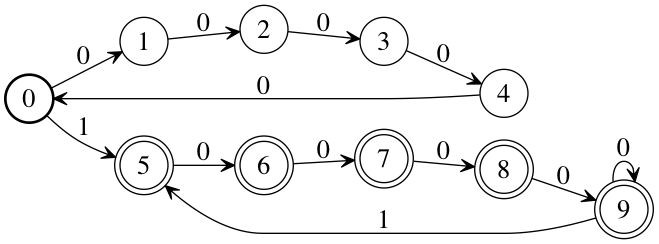

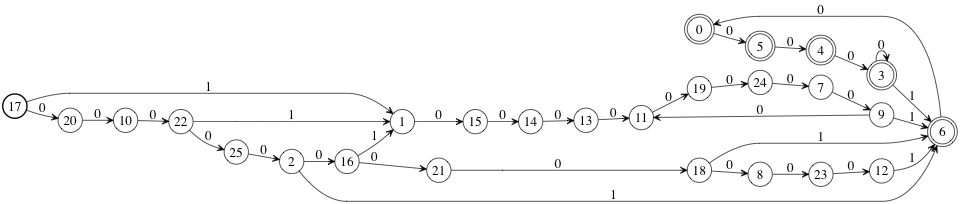

a_t1 = FastAutomaton([(0,1,0),(1,2,0),(2,3,0),(3,4,0),(4,0,0),(0,5,1),(5,6,0),(6,7,0),(7,8,0),(8,9,0),(9,9,0),(9,5,1)], i=0, final_states=[5,6,7,8,9]) a_t1.plot() a_t2 = Z(FastAutomaton([(10, 8, 0),(8,17,0),(17,6,0),(10, 13, 1), (6,5,0),(5,9,0),(9,16,0),(6,13,1),(16,13,1),(16,27,0),(27,24,0),(24,25,0),(13,12,0),(12,11,0),(11,15,0),(15,18,0),(18,7,0),(7,14,0),(14,19,0),(19,4,0),(4,18,0),(4,22,1),(25,1,0),(1,26,0),(26,23,1),(24,23,1),(23,2,0),(2,21,0),(21,20,0),(20,3,0),(3,3,0),(3,22,1),(22,0,0),(0,21,0),(9,22,1)], i=10, final_states=[0,21,20,3,22])) a_t2.plot() a_t3 = Z(FastAutomaton([(13,1,0),(1,23,0),(23,22,0),(22,21,0),(21,20,0),(20,19,1),(19,18,0),(18,17,0),(17,2,0),(2,3,0),(13,12,1),(12,11,0),(11,10,0),(10,9,0),(9,8,0),(8,7,0),(7,6,0),(6,5,0),(5,4,0),(4,8,0),(4,16,1),(3,3,0),(3,16,1),(16,0,0),(0,15,0),(15,14,0),(14,3,0)], i=13, final_states=[0,15,14,3,16])) a_t3.plot()
#check that Q_{1000L_h} = Q_{L_1} eqQ(AutWord([1,0,0,0]).concat(h), a_t1)
 True True

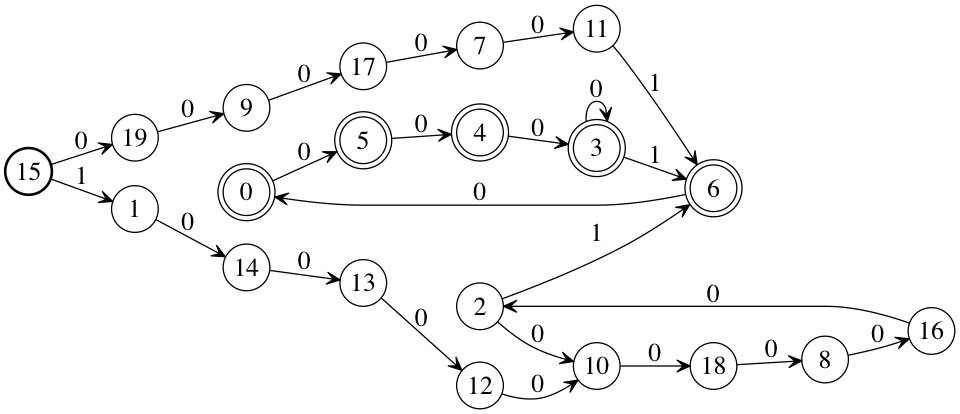

#check that Q_{L_2} is a finite union of Hokkaido tiles a2 = MakeAut([[0,0,0,0,0,1,0,0,0,0],[0,0,0,0,0,0,0,0,1,0,0,0,0],[0,0,0,0,0,0,0,0,0,0,0,1,0,0,0,0],[1,0,0,0,0,0,1,1,0,0,0,0,0],[0,0,0,1,0,0,0,0,0,1,1,0,0,0,0,0],[0,0,0,0,0,0,1,0,0,0,0,0,1,1,0,0,0,0,0]]).emonde().minimise() a2.plot() eqQ(a2.concat(h), a_t2)
 True True

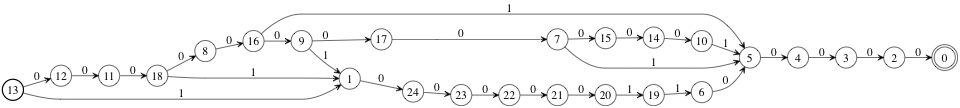

#check that Q_{L_3} is a finite union of Hokkaido tiles a3 = MakeAut([[0,0,0,0,0,1,0,0,0,0],[1,0,0,0,0,0,1,1,0,0,0,0,0]]).emonde().minimise() a3.plot() eqQ(a3.concat(h), a_t3)
 True True
######################################################## # Construction of the languages B1, B2, B3, C1, C2, C3 # ########################################################

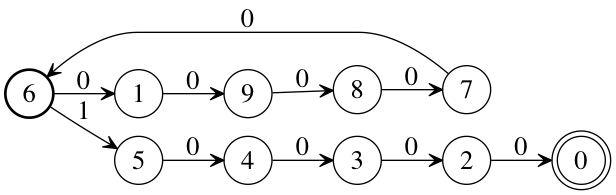

c1 = FastAutomaton([(1, 9, 0), (2, 0, 0), (3, 2, 0), (4, 3, 0), (5, 4, 0), (6, 1, 0), (6, 5, 1), (7, 6, 0), (8, 7, 0), (9, 8, 0)], i=6, final_states=[0]) c1.plot() c2 = FastAutomaton([(1, 24, 0), (2, 0, 0), (3, 2, 0), (4, 3, 0), (5, 4, 0),(6, 5, 0), (7, 15, 0), (7, 5, 1), (8, 16, 0), (9, 17, 0), (9, 1, 1),(10, 5, 1), (11, 18, 0), (12, 11, 0), (13, 12, 0), (13, 1, 1), (14, 10,0), (15, 14, 0), (16, 9, 0), (16, 5, 1), (17, 7, 0), (18, 8, 0), (18, 1,1), (19, 6, 1), (20, 19, 1), (21, 20, 0), (22, 21, 0), (23, 22, 0), (24,23, 0)], i=13, final_states=[0]) c2.plot() c3 = FastAutomaton([(1, 18, 0), (2, 0, 0), (3, 2, 0), (4, 3, 0), (5, 4, 0),(6, 5, 0), (7, 5, 1), (8, 7, 0), (9, 8, 0), (10, 9, 0), (11, 10, 0),(12, 11, 0), (12, 1, 1), (13, 6, 1), (14, 13, 1), (15, 14, 0), (16, 15,0), (17, 16, 0), (18, 17, 0)], i=12, final_states=[0]) c3.plot()
a3.equals_langages(c3)
 True True
#check that Q_{L_i} = Q_{C_i.L_h} print eqQ(a_t1, c1.concat(h)) print eqQ(a_t2, c2.concat(h)) print eqQ(a_t3, c3.concat(h))
 True True True True True True
#compute F_i = {q in states of a}{Q_{C_i} is a subset of Q_{L_q}} if False: F1 = [] F2 = [] F3 = [] i = A.initial_state() for e in A.states(): A.set_initial_state(e) if Proj(A, c1).equals_langages(Z(c1)): F1.append(e) if Proj(A, c2).equals_langages(Z(c2)): F2.append(e) if Proj(A, c3).equals_langages(Z(c3)): F3.append(e) A.set_initial_state(i) else: F1=[6] F2=[16] F3=[12, 16, 36, 55] print "F1=%s, F2=%s, F3=%s"%(F1, F2, F3)
 F1=[6], F2=[16], F3=[12, 16, 36, 55] F1=[6], F2=[16], F3=[12, 16, 36, 55]
#compute languages D_i from F_i d1 = A.copy() d1.set_final_states(F1) d1 = d1.emonde().minimise() print d1 d2 = A.copy() d2.set_final_states(F2) d2 = d2.emonde().minimise() print d2 d3 = A.copy() d3.set_final_states(F3) d3 = d3.emonde().minimise() print d3
 FastAutomaton with 192 states and an alphabet of 2 letters FastAutomaton with 191 states and an alphabet of 2 letters FastAutomaton with 191 states and an alphabet of 2 letters FastAutomaton with 192 states and an alphabet of 2 letters FastAutomaton with 191 states and an alphabet of 2 letters FastAutomaton with 191 states and an alphabet of 2 letters
#compute languages E_i Ah = A.concat(h) e2 = Proj(d2.concat(c2).concat(h), Ah) e3 = Proj(d3.concat(c3).concat(h), Ah).intersection(e2.complementary()) e1 = Proj(d1.concat(c1).concat(h), Ah).intersection((e2.union(e3)).complementary()) e2 = e2.emonde() e3 = e3.emonde() print e1 print e2 print e3
 FastAutomaton with 205 states and an alphabet of 2 letters FastAutomaton with 205 states and an alphabet of 2 letters FastAutomaton with 205 states and an alphabet of 2 letters FastAutomaton with 205 states and an alphabet of 2 letters FastAutomaton with 205 states and an alphabet of 2 letters FastAutomaton with 205 states and an alphabet of 2 letters

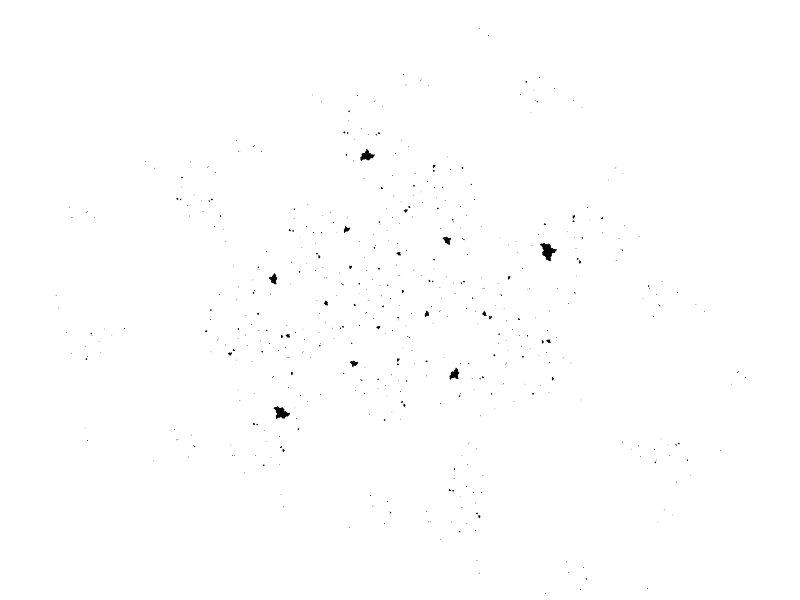

#plot E_1 m.plot2(tss=e1)

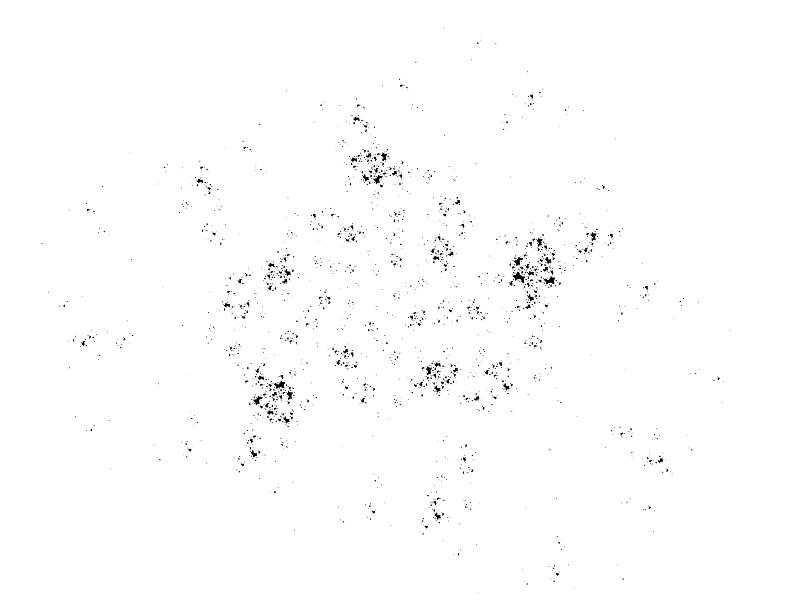

#plot E_2 m.plot2(tss=e2)
#plot E3 m.plot2(tss=e3)
#check that Z(A L_h) = E1 u E2 u E3 print e1.union(e2).union(e3).equals_langages(Z(A.concat(h)))
 True True

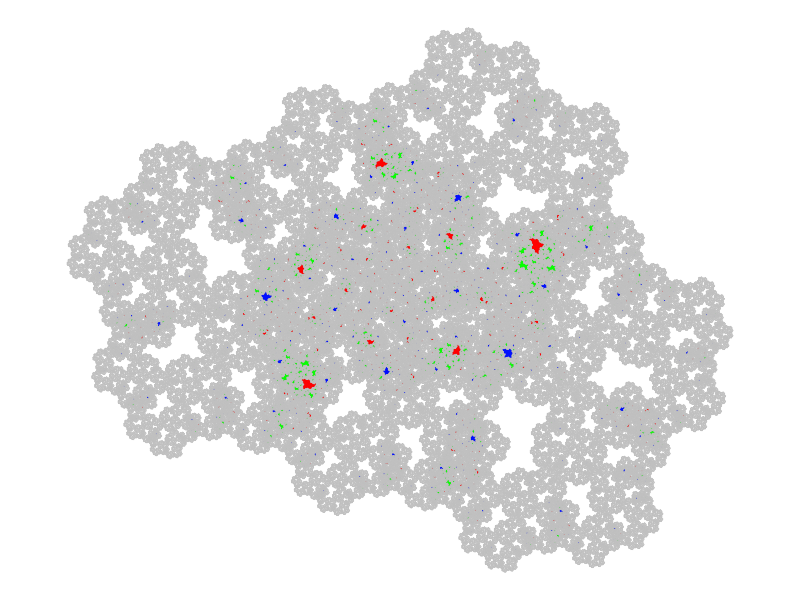

#plot the whole fractal with color corresponding to E1, E2 and E3 m.plot3(la=[M.union(e1.union(e2).union(e3)), e1, e2, e3])
#compute A_1 such that Z(E_1) = Z(A_1 L_h) e1 = e1.emonde() A1 = e1.copy() for c in e1.strongly_connected_components(): if len(c) == 5: #check that every state of this component is final if len([e for e in c if e1.is_final(e)]) == 5: #look for the only state from which two transition are leaving l = [e for e in c if e1.succ(e, 0)!= -1 and e1.succ(e, 1)!= -1] if len(l) == 1: e = l[0] A1.set_succ(e, 0, -1) #remove these transitions A1.set_succ(e, 1, -1) A1.set_final_states([e]) #set this state as the only final state A1 = A1.emonde().minimise() print A1 #check that A_1 is correct Z(e1).equals_langages(Z(A1.concat(h)))
 FastAutomaton with 205 states and an alphabet of 2 letters True FastAutomaton with 205 states and an alphabet of 2 letters True
#compute A_2 such that Z(E_2) = Z(A_2 L_h) e2 = e2.emonde() A2 = e2.copy() for c in e2.strongly_connected_components(): if len(c) == 5: #check that every state of this component is final if len([e for e in c if e2.is_final(e)]) == 5: #look for the only state having a loop l = [e for e in c if e2.succ(e, 0) == e] if len(l) == 1: e = l[0] A2.set_succ(e, 0, -1) #remove these transitions A2.set_succ(e, 1, -1) A2.set_final_states([e]) #set this state as the only final state print A2 #check that A_2 is correct Z(e2).equals_langages(Z(A2.concat(h)))
 FastAutomaton with 205 states and an alphabet of 2 letters True FastAutomaton with 205 states and an alphabet of 2 letters True
#compute A_3 such that Z(E_3) = Z(A_3 L_h) e3 = e3.emonde() A3 = e3.copy() for c in e3.strongly_connected_components(): if len(c) == 5: #check that every state of this component is final if len([e for e in c if e3.is_final(e)]) == 5: #look for the only state having a loop l = [e for e in c if e3.succ(e, 0) == e] if len(l) == 1: e = l[0] A3.set_succ(e, 0, -1) #remove these transitions A3.set_succ(e, 1, -1) A3.set_final_states([e]) #set this state as the only final state print A3 #check that A_3 is correct Z(e3).equals_langages(Z(A3.concat(h)))
 FastAutomaton with 205 states and an alphabet of 2 letters True FastAutomaton with 205 states and an alphabet of 2 letters True
#compute B_1 B1 = A1.copy() if False: F1 = [] i = B1.initial_state() for e in B1.states(): B1.set_initial_state(e) if Proj(B1.concat(h), a_t1).equals_langages(Z(a_t1)) and not A1.is_final(e): F1.append(e) B1.set_initial_state(i) else: F1 = [6] print F1, A1.final_states() B1.set_final_states(F1) B1 = B1.emonde().minimise() print B1 #check that Q_{B_1.C_1.L_h} = Q_{A_1.L_h} print eqQ(B1.concat(c1).concat(h), A1.concat(h)) print eqQ(e1, A1.concat(h)) print eqQ(B1.concat(c1).concat(h), e1)
 [6] [0] FastAutomaton with 200 states and an alphabet of 2 letters True True True [6] [0] FastAutomaton with 200 states and an alphabet of 2 letters True True True
#compute B_2 if False: F2 = [] i = A2.initial_state() for e in A2.states(): A2.set_initial_state(e) if Proj(A2.concat(h), a_t2).equals_langages(Z(a_t2)) and not A2.is_final(e): #if Proj(B2, a2).equals_langages(Z(a2)): F2.append(e) A2.set_initial_state(i) else: F2 = [12] print F2 B2 = A2.copy() B2.set_final_states(F2) B2 = B2.emonde().minimise() print B2 #check that Q_{B_2.C_2.L_h} = Q_{A_2.L_h} eqQ(B2.concat(c2).concat(h), A2.concat(h))
 [12] FastAutomaton with 191 states and an alphabet of 2 letters True [12] FastAutomaton with 191 states and an alphabet of 2 letters True
#compute B_3 B3 = A3.copy() if False: F3 = [] i = B3.initial_state() for e in B3.states(): B3.set_initial_state(e) #if Proj(B3.concat(h), a_t3).equals_langages(Z(a_t3)) and not B3.is_final(e): if Proj(B3, a3).equals_langages(Z(a3)): # and not B3.is_final(e): F3.append(e) B3.set_initial_state(i) else: F3 = [12] print F3 B3.set_final_states(F3) B3 = B3.emonde().minimise() print B3 #check that Q_{B_3.C_3.L_h} = Q_{A_3.L_h} eqQ(B3.concat(c3).concat(h), A3.concat(h))
 [12] FastAutomaton with 191 states and an alphabet of 2 letters True [12] FastAutomaton with 191 states and an alphabet of 2 letters True
################################################################ # Verification that B1, B2, B3, C1, C2, C3 satisfy the theorem # ################################################################
#check that the union of these parts is the whole fractal ah1 = B1.concat(c1).concat(h) ah2 = B2.concat(c2).concat(h) ah3 = B3.concat(c3).concat(h) ah = Z(ah1.union(ah2).union(ah3)) print eqQ(A.concat(h), ah) print eqQ(s.unshift(0,3), M.union(ah))
 True True True True
m.plot3(la=[M.union(ah), ah1, ah2, ah3], colormap='CMRmap')
#automaton recognizing the diagonal diag = FastAutomaton([(0,0,(i,i)) for i in m.C]+[(0,1,(i,j)) for i in m.C for j in m.C if i != j]+[(1,1,(i,j)) for i in m.C for j in m.C],i=0, final_states=[0]).emonde() diag.plot()
#check that adherences of tiles of type 1 doesn't intersect ch = c1.concat(h) H = B1.concat(Pref(ch)) D = diag.intersection(B1.product(B1)).concat(Pref(ch.product(ch).emonde().minimise())) P = H.product(H).emonde().minimise() r = arelinf.intersection(P.intersection(D.complementary())) r = S(r) r.is_empty()
 4 [] True 4 [] True
#check that adherences of tiles of type 2 doesn't intersect ch = c2.concat(h) H = B2.concat(ch) #Pref(ch)) D = diag.intersection(B2.product(B2).emonde().minimise()).concat(ch.product(ch).emonde().minimise()) P = H.product(H).emonde().minimise() r = arelinf.intersection(P.intersection(D.complementary())) r = S(r) r.is_empty()
 0 [] True 0 [] True
#check that adherences of tiles of type 3 doesn't intersect #ch = Pref(c3.concat(h)) ch = c3.concat(h) H = B3.concat(ch) D = diag.intersection(B3.product(B3).emonde().minimise()).concat(ch.product(ch).emonde().minimise()) P = H.product(H) r = arelinf.intersection(P.intersection(D.complementary())) r = S(r) r.is_empty()
 0 [] True 0 [] True
#define phi A = B1.concat(c1).union(B2.concat(c2).union(B3.concat(c3))) Ah = A.concat(h) def phi(L): ai = S(Z(L).product(Z(Ah)).emonde().minimise().intersection(arelinf)) return ah.intersection(ai.proji(1).concat(FastAutomaton(m.default_ss())))
#check that phi(B_1 Pref(Z(C_1 L_h))) = B_1 C_1 L_h Z(phi(B1.concat(Pref(Z(c1.concat(h)))))).equals_langages(Z(B1.concat(c1).concat(h)))
 10 [303, 305, 306, 307, 308, 282, 284, 285, 286, 287, 18, 20, 21, 22, 23, 24, 25, 27, 28, 43, 44, 45, 46, 47, 49, 50, 33, 34, 35, 36, 37] True 10 [303, 305, 306, 307, 308, 282, 284, 285, 286, 287, 18, 20, 21, 22, 23, 24, 25, 27, 28, 43, 44, 45, 46, 47, 49, 50, 33, 34, 35, 36, 37] True
#check that phi(B_2 Pref(Z(C_2 L_h))) = B_2 C_2 L_h Z(phi(B2.concat(Pref(Z(c2.concat(h)))))).equals_langages(Z(B2.concat(c2).concat(h)))
 19 [667, 669, 670, 671, 672, 737, 746, 749, 945, 947, 745, 747, 944, 946, 948, 270, 272, 273, 274, 275, 276, 277, 279, 280, 297, 298, 299, 300, 301, 303, 304, 360, 361, 362, 364, 365, 261, 262, 263, 264, 265] False 19 [667, 669, 670, 671, 672, 737, 746, 749, 945, 947, 745, 747, 944, 946, 948, 270, 272, 273, 274, 275, 276, 277, 279, 280, 297, 298, 299, 300, 301, 303, 304, 360, 361, 362, 364, 365, 261, 262, 263, 264, 265] False
#check that phi(B_3 Pref(Z(C_3 L_h))) = B_3 C_3 L_h Z(phi(B3.concat(Pref(Z(c3.concat(h)))))).equals_langages(Z(B3.concat(c3).concat(h)))
 18 [449, 451, 452, 453, 454, 425, 428, 438, 440, 442, 254, 256, 257, 258, 259, 260, 261, 263, 264, 284, 285, 286, 287, 288, 290, 291, 658, 669, 670, 672, 673, 278, 279, 280, 281, 282] True 18 [449, 451, 452, 453, 454, 425, 428, 438, 440, 442, 254, 256, 257, 258, 259, 260, 261, 263, 264, 284, 285, 286, 287, 288, 290, 291, 658, 669, 670, 672, 673, 278, 279, 280, 281, 282] True
#check that phi(B_2 C_2 Pref(Z(L_h))) = B_2 C_2 L_h t1 = phi(B2.concat(c2).concat(h)) t2 = B2.concat(c2).concat(h) print Z(t1).equals_langages(Z(t2)) t2.included(Z(t1))
 13 [467, 469, 470, 471, 472, 447, 449, 450, 451, 452, 21, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 34, 35, 256, 258, 259, 248, 249, 250, 251, 252] True True 13 [467, 469, 470, 471, 472, 447, 449, 450, 451, 452, 21, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 34, 35, 256, 258, 259, 248, 249, 250, 251, 252] True True
#zoom on the Rauzy fractal m.draw_zoom(tss=A.concat(h))
 Jul 11 17:52:05 python[624] : void CGSUpdateManager::log() const: conn 0x15bd3: spurious update. Jul 11 17:52:05 python[624] : void CGSUpdateManager::log() const: conn 0x15bd3: spurious update.
#draw the zoom on the Rauzy fractal, with tiles of type 1 in black, tiles of type 2 in purple, tiles of type 3 in yellow-orange, and the part of dimension < 2 in gray m.plot3(la=[M.union(ah), ah1, ah2, ah3], colormap='CMRmap', ajust=False)
